Product Overview

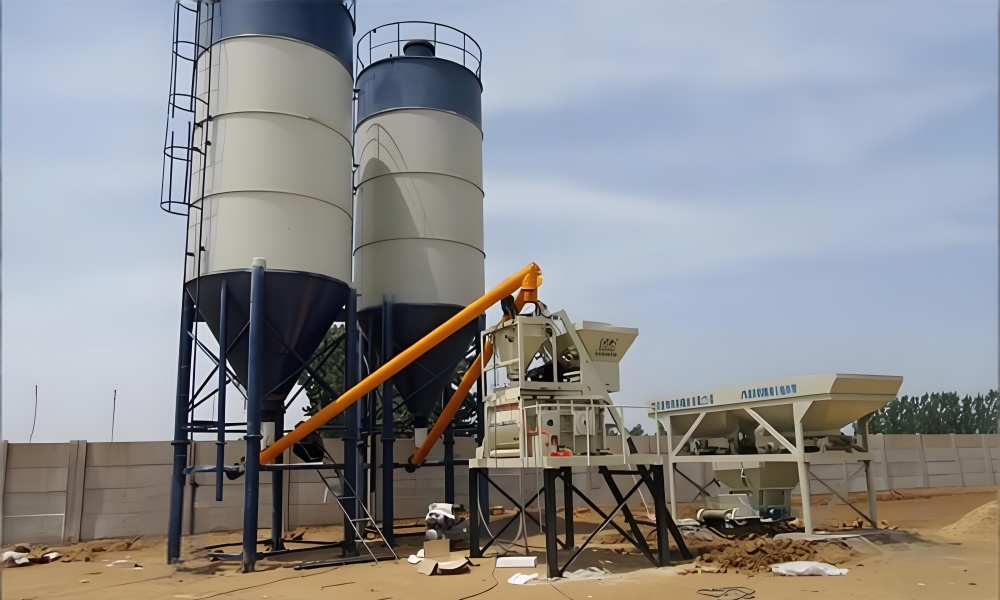

The HZS35 Concrete Batching Plant is a medium-sized stationary plant with a theoretical productivity of 35m³/h. It is powered by the high-performance JS750 Twin-Shaft Compulsory Mixer, which provides a larger charging capacity and superior mixing intensity compared to the HZS25 model.

Designed with a focus on durability and efficiency, the HZS35 is widely used in bridge construction, road works, and medium-sized precast concrete factories. Its optimized design ensures precise batching, reliable operation, and a fast return on investment.

Technical Parameters

Item	Specification
Productivity	35 m³/h
Main Mixer	JS750 (Twin-shaft)
Mixer Power	30 kW
Max Aggregate Size	≤ 60/80 mm
Discharge Height	1.5m / 2.7m / 3.8m
Batching Machine	PLD1200

Features and Advantages

• Enhanced Capacity: Equipped with JS750 mixer to handle larger batches with 0.75m³ discharge per cycle.
• Robust Modular Frame: Structural design emphasizes stability and resistance to vibration during heavy-duty mixing.
• Advanced Batching System: Paired with PLD1200 batching machine for high-speed and accurate aggregate proportioning.
• Intelligent Automation: Full-computer PLC control system with real-time monitoring and data storage capabilities.
• Cost-Efficient Operation: Optimized energy consumption per cubic meter of concrete produced.
• Environmental Compliance: Fully enclosed weighing and conveying systems to minimize dust and noise pollution.
