Product Overview

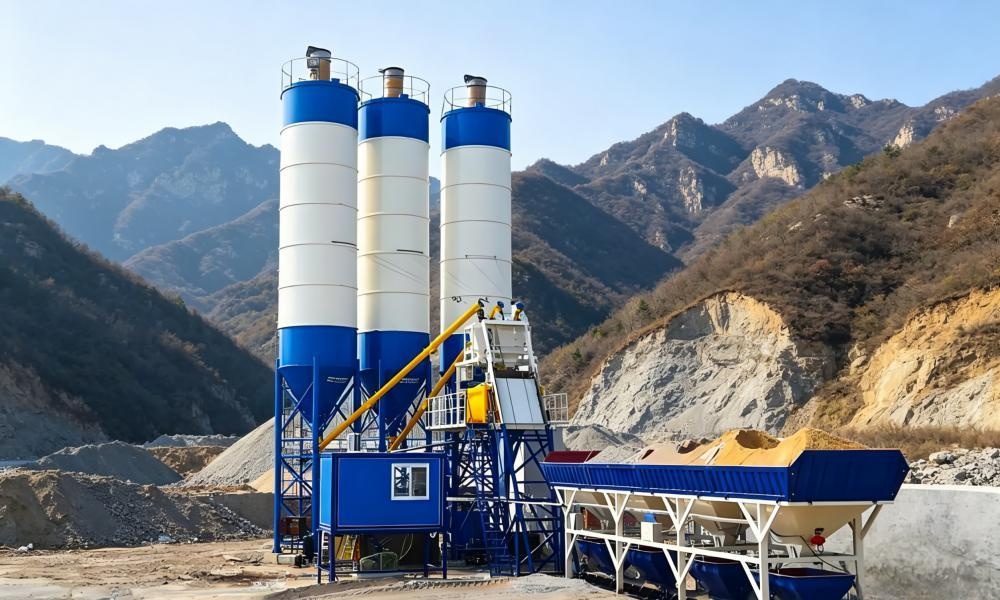

The HZS75 Concrete Batching Plant is a semi-automatic concrete mixing set with a theoretical capacity of 75m³/h. It is built around the heavy-duty JS1500 Twin-Shaft Compulsory Mixer, which delivers 1.5 cubic meters of high-quality concrete per batch cycle.

By utilizing a skip-hoist (lifting hopper) feeding system, the HZS75 occupies significantly less land than belt-fed plants of similar capacity. This makes it a premier choice for construction sites with limited space that still require high productivity for bridges, housing projects, and road infrastructure.

Technical Parameters

Item	Specification
Productivity	75 m³/h
Main Mixer	JS1500 (Twin-shaft)
Mixer Power	2 x 30 kW
Feeding Type	Skip Hoist (Lifting Hopper)
Max Aggregate Size	≤ 60/80 mm
Discharge Height	3.8m / 4.1m
Batching Machine	PLD2400

Features and Advantages

• High-Capacity JS1500 Mixer: Engineered for rapid mixing and discharging, ensuring consistent homogeneity across all concrete grades.
• Advanced PLD2400 Batcher: Features multi-speed aggregate feeding and high-precision load cells for rigorous recipe compliance.
• Compact Footprint: The hoist feeding design eliminates the need for long conveyor belts, saving valuable site space.
• Enhanced Safety & Control: Equipped with a full-featured PLC system, centralized control room, and emergency stop protocols for safe operation.
• Wear-Resistant Build: Liners and blades are made of high-manganese and chromium alloys to withstand the friction of 1.5m³ batches.
• Rapid Return on Investment: Combines the output of a large plant with the operational costs of a medium plant, maximizing profitability.
