Product Overview

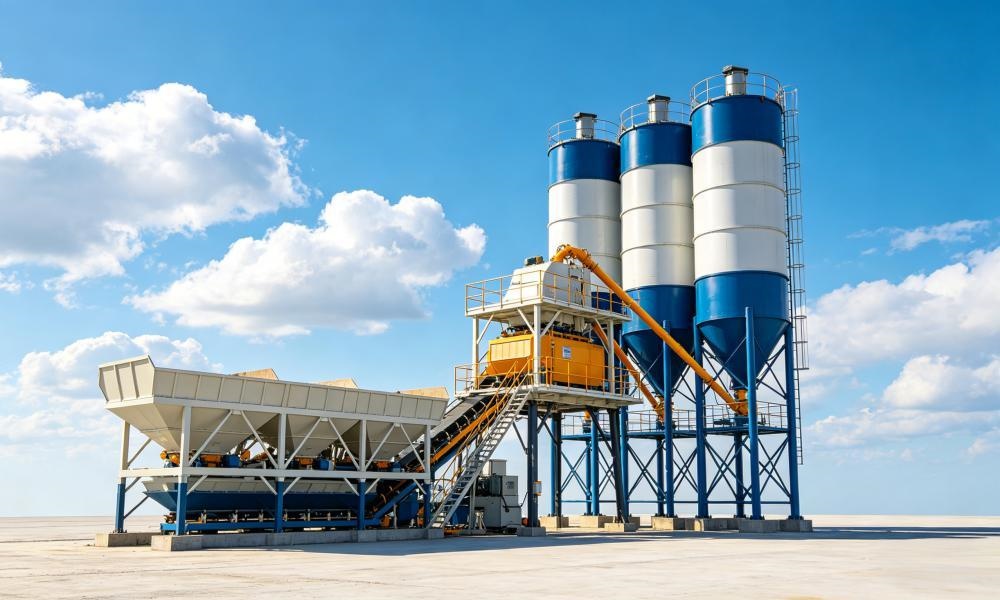

The HZS90 Concrete Batching Plant is a medium-to-large stationary plant with a theoretical productivity of 90m³/h. It is powered by the JS1500 Twin-Shaft Compulsory Mixer and utilizes a belt conveyor feeding system to ensure a continuous and steady supply of aggregates, which is essential for high-intensity commercial concrete production.

Designed for reliability and environmental compliance, the HZS90 features a modular structure that allows for fast installation and easy expansion. It is the preferred choice for commercial concrete suppliers, large-scale bridge engineering, and major water conservancy projects where quality and volume are paramount.

Technical Parameters

Item	Specification
Productivity	90 m³/h
Main Mixer	JS1500 (Twin-shaft)
Mixer Power	2 x 30 kW
Feeding Type	Belt Conveyor
Max Aggregate Size	≤ 60/80 mm
Discharge Height	3.8m / 4.1m
Batching Machine	PLD2400

Features and Advantages

• Efficient Belt Feeding: The inclined belt conveyor provides smooth and continuous aggregate delivery, reducing cycle times and increasing overall plant throughput.
• High-Stability Mixing: The JS1500 mixer features dual-motor drive for high torque and consistent mixing homogeneity across all concrete grades.
• Precise Measurement System: Independent weighing of cement, water, and additives using high-precision sensors ensures strict adherence to mix recipes.
• Environmentally Focused: Fully enclosed mixing tower and belt system significantly reduce dust emissions and noise pollution.
• Advanced Automation: Full-computer PLC control system with real-time dynamic monitoring, automatic error compensation, and comprehensive data reporting.
• Robust Modular Frame: Heavy-duty steel structure ensures minimum vibration and a long service life under high-load conditions.
